electromaticEnergy

Capabilities /01

Switchgear
& Control.

Power distribution, motor control and automation for industry, infrastructure and buildings. From panel design and assembly to integrated site commissioning.

LV / MV · PLC / SCADA

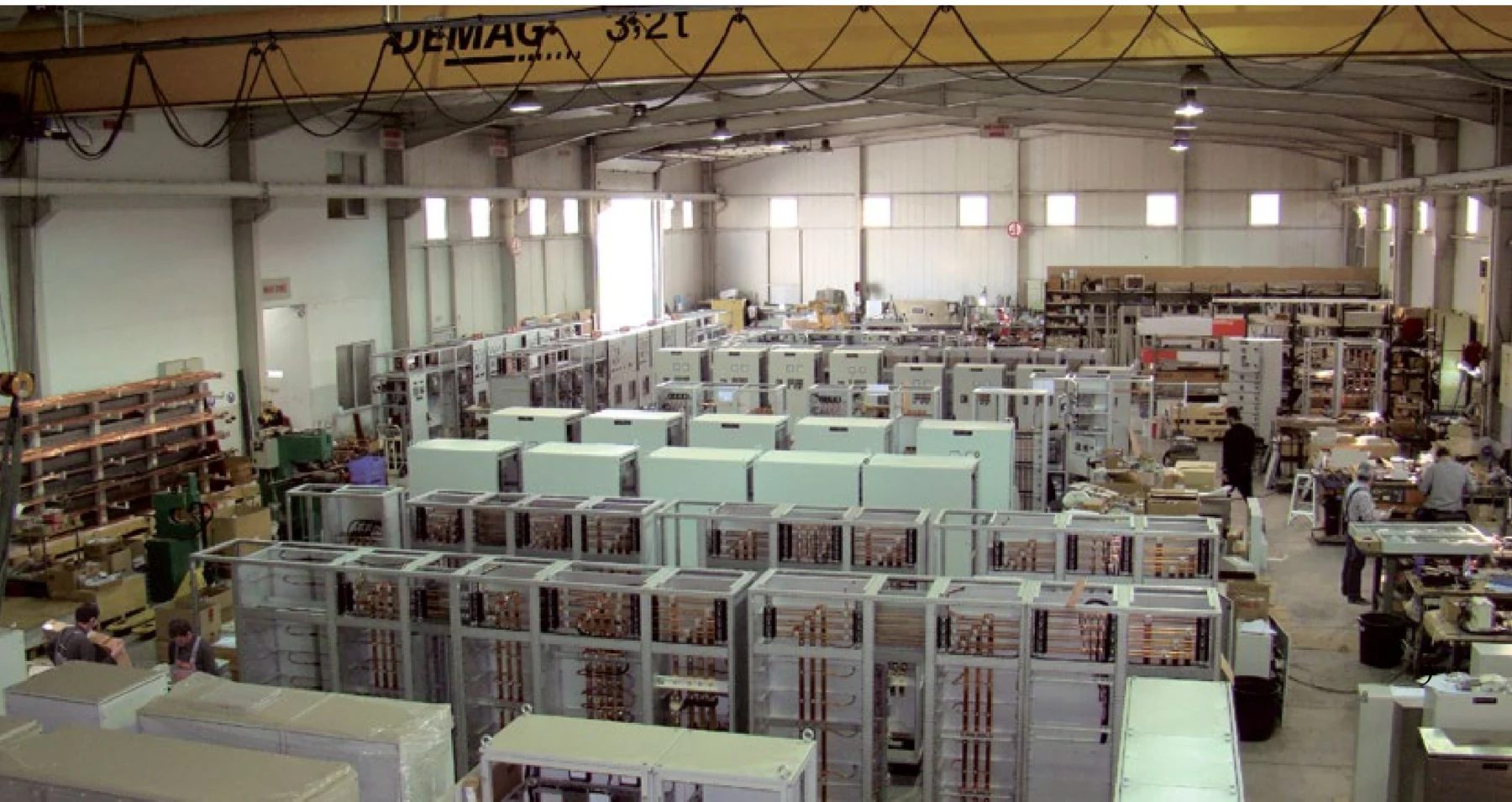

Switchgear assemblies on the Electromatic workshop floor
Switchgear assembly · Electromatic workshop
Main LV switchboard lineup for Rack Centre
Rack Centre, Lagos · Main LV switchboards

Supply & engineering

Equipment. Controls. Commissioning.

01

LV distribution & motor control

Main LV switchboards, motor control centres, distribution boards, automatic transfer switches and power factor correction. Busduct and busway systems connect the distribution package.

02

MV systems & auxiliary power

GIS and AIS switchgear, ring main units, transformers and compact substations, integrated with protection, DC battery charging and UPS systems.

03

PLC, HMI & SCADA

In-house PLC programming, operator interfaces, SCADA and DCS interfaces, with field instrumentation and fibre communications. Applications include process plants, pumping stations and PV parks.

04

Building & room controls

KNX and EIB lighting and room controls, energy metering and distribution. The City of Dreams reference includes a separate KNX package for 500 guestrooms and suites.

Delivery scope

Built for substantial contracts.

Design, manufacture and equipment supply, with commissioning available. A strong base in Cyprus and international delivery including the United Kingdom and Nigeria.

Equipment brands

Only leading brands.

We work exclusively with leading manufacturers for our switchgear and control equipment.

Project experience

Selected references

All selected projects
Copper busbar assembly for Rack Centre switchboardsCompleted main LV switchboard lineup for Rack Centre
Lagos, Nigeria2023–2024

Switchgear & Control

Rack Centre Phase 2.1

4 × 6,300 Amain LV switchboards

400 V main distribution, UPS load-bank connections, automatic transfer and busduct systems for the Lagos data centre expansion.

Project scope
Client
Rack Centre Limited
  • Four 6,300 A main LV switchboards, a main auxiliary switchboard and a UPS load-bank switchboard.
  • 6,000 / 3,200 / 2,500 / 1,600 A power busducts, automatic transfer switches and distribution boards.
  • Design, manufacture, supply and commissioning of the LV distribution package.
Architectural project visual of City of Dreams Mediterranean from the company presentationProject visual
Limassol, Cyprus2020–2023

Switchgear & Control

City of Dreams Mediterranean

500guestrooms with KNX room controls

MV/LV power distribution and a separate KNX room-control package for the resort.

Project scope
Client
ICR Cyprus Resort Development Co Ltd
  • 22 kV switchboards, MV ONAN transformers, main LV switchboards, MCCs, distribution boards, dimmer racks, and 110 VDC / 24 VDC battery charging.
  • Electrical package: design, manufacture, supply, testing and commissioning; main contractor JV AVAX–TERNA.
  • Separate room-control package: design, supply, testing and commissioning of KNX controls, faceplates, accessories and distribution boards for 500 guestrooms and suites.

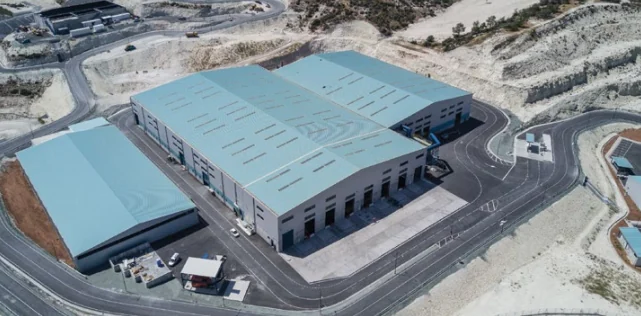

Limassol solid-waste management plant from the company presentation
Limassol, Cyprus

Switchgear & Control

Limassol solid-waste management plant

18 + 18motor control centres + PLC outstations

Plant power distribution, motor control and process automation connected through a central SCADA system.

Project scope
Client
Cyprus Ministry of Interior
Contractor
db Technologies BV / ANAERGIA / A. Eracleous Elec. Inst. Ltd
  • Four 22 kV MV switchboards; four 22/0.4 kV transformers rated 2,500 / 500 kVA; two main LV switchboards with power factor correction.
  • Eighteen motor control centres, eight power and lighting distribution panels, eighteen PLC outstations, a control station, SCADA, field instruments and communications.
  • Design, supply, programming, testing and commissioning of the electrical and automation package.
